Certification of Thermal
Cutting Procedures
Material and Shape of
Test Piece
In accordance with the standards on the execution of steel and aluminum structures, we certify thermal cutting procedures (CPQR). The latter are used by manufacturers to prove the quality of cut surfaces or edges. Cutting shall be carried out in a way that ensures the fulfillment of requirements for geometrical tolerances, perpendicularity, and angularity, and maximum hardness and smoothness of free edges as specified in the European standards.
+386 7 49 12 419
+386 41 215 267
ambroz.rozman@qtechna.si
certificiranje1090@qtechna.si
+386 7 49 12 439
+386 31 719 834
andrej.weiss@qtechna.si
certificiranje1090@qtechna.si
+386 7 49 12 454
+386 51 384 563
tamara.tomse@qtechna.si
atestiranje@qtechna.si
+386 7 49 12 454
+386 31 818 037
jernej.zofic@qtecnha.si
atestiranje@qtechna.si

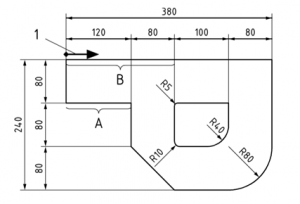

The recommended shape of the test piece as per SIST EN 1090-2:2018 is illustrated below. The minimum and maximum thicknesses the manufacturer intends to certify are selected.
Test piece Material group from CEN ISO/TR 15608 | Range Material groups according to CEN ISO/TR 15608 |
1 | 1a, 2b |
1.4 | 1b, 2b |
2 | 1.1, 2b |
3 | 1a, 2b, 3b |
a Except for 1.4 and valid for steel with the same or lower determined minimum yield strength b Valid for steel with same or lower determined minimum yield strength |
